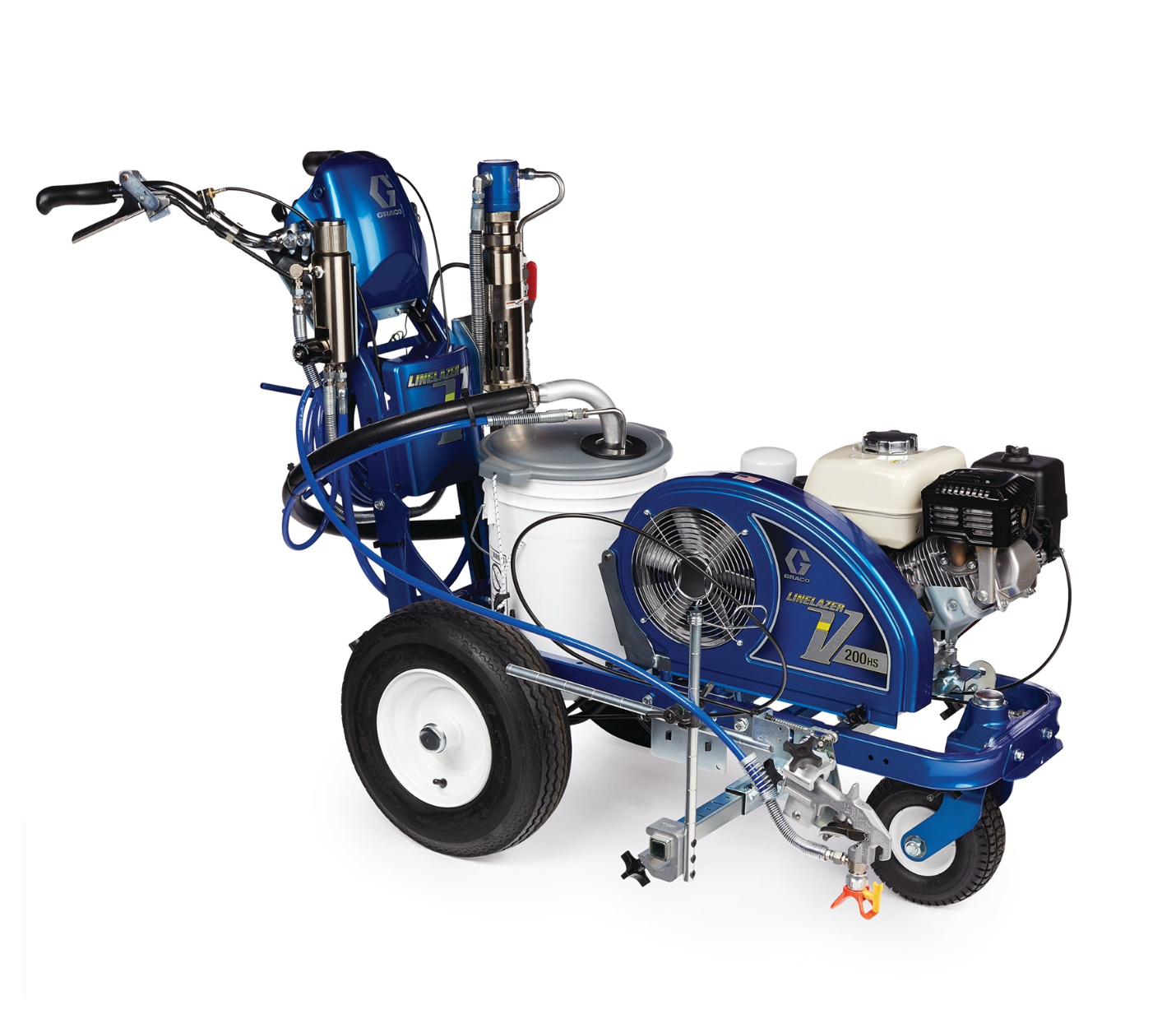

Graco LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 1 Manual Gun

Graco LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 1 Manual Gun

Sale price  $21,980.00 Regular price  $25,410.00

The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.

Product Features

The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-colour, single or dual gun striping solution.

  • LiveLook Display with SmartControl
    Striping Information At-A-GlanceTrack, measure and control every aspect of your job. Accessible proof-of-job data from the J-Log System with USB Download. Consistent spraying pressure for perfect lines
  • Honda® GX Engine
    Reliable, Easy-to-Start Power. Contractor-preferred – excellent power and proven reliability. Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    Easy Gun Adjustments. Perfect gun alignment every time with easy-to-use guide mark system. 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    Perfect Striper Tracking. Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    Easy Handlebar Adjustment
  • Endurance Chromex Pump
    Reliable, Long-Life Pump. Industry-best pump performance – field-proven design. Handle the most demanding materials with long-life rod treatment. 4X harder than ordinary chrome
  • High-Efficiency Hydraulic Motor
    Uninterrupted Performance. No-Stall design
  • High-Capacity Cooling System
    Reduced Down Time. Innovative design allows the pump to run cooler and more efficiently. Easier and more thorough fluid changes. Reservoir cooling fins deflect more heat. No special hydraulic fluid needed
  • QuikSelect Gun Selector
    Simple Gun Control. Independently control of two guns with one lever – solid/skip
  • Easy Out Pump Filter
    Easy Pump Maintenance & Less Clogging. Inside-out design means less mess with fewer tip clogs
Shipping
Specifications

Engine Brand Honda

Engine Model GX200

Fuel Tank Capacity (L)3.6

Includes Manual Gun

Maximum Flow Rate (L/min) 8.14

Maximum Sound Pressure Level (dB(A)) 86.5

Maximum Tip Size (cm) 0.1194

Maximum Working Pressure (psi) 3300

Model LineLazer V

Number of Colors One Colour

Number of Guns 1

Number of Pumps 1

Overall Height (cm) 113.03

Overall Length (cm) 174.63

Overall Width (cm) 87

Power Rating (kW) 4.85

Series 200HS

Weight (kg) 139

Product Series HP Reflective
